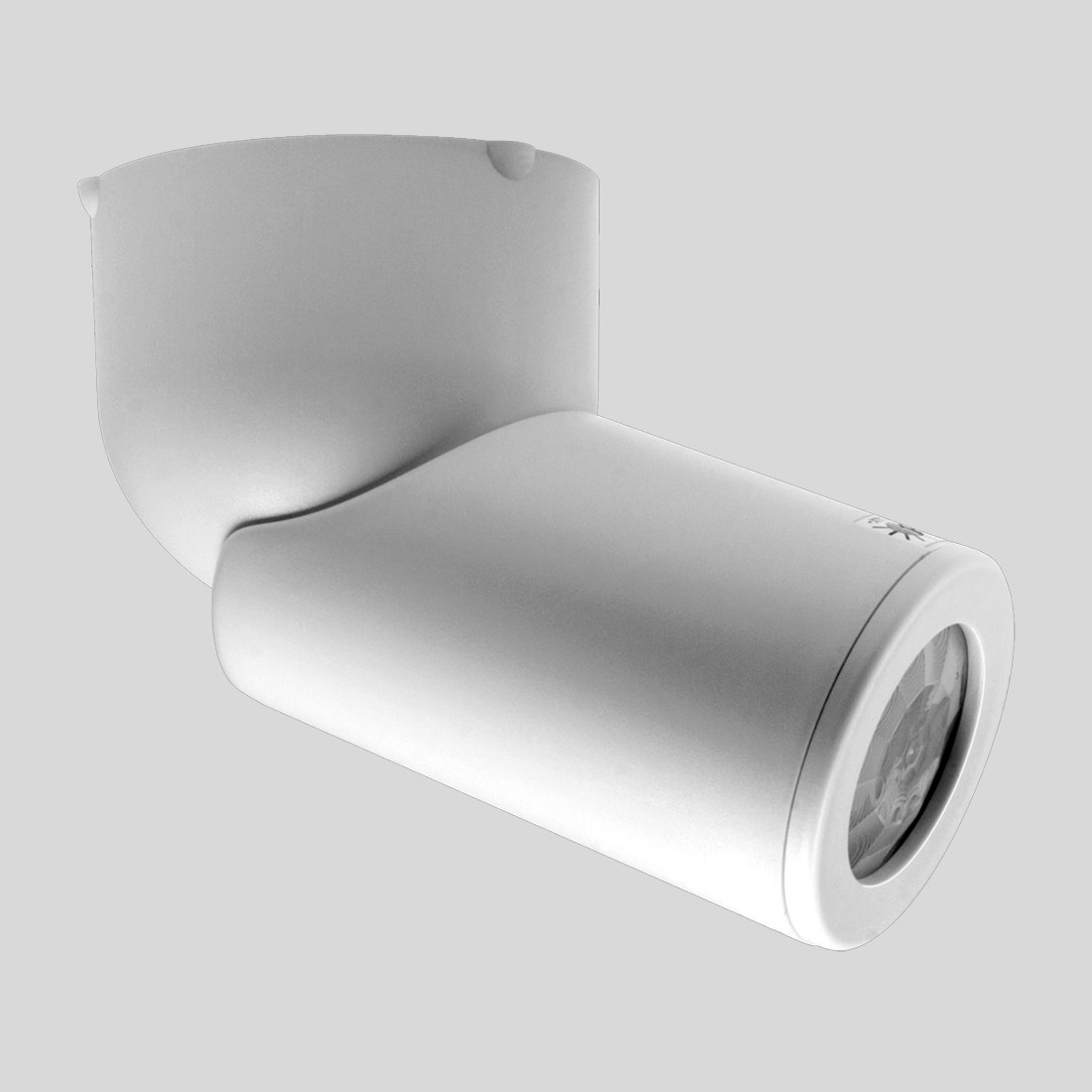

CEDR 6P
CEDR 6P
Ceiling Directional.
Ceiling directional PIR switch. These directional PIR switches plug into a ceiling mounted socket. The socket can be mounted on a BESA box. Designed to give a directional view of the activity to be monitored. Detection angle 120°. CEDR 6P can be rotated and lowered to a 45° angle. Requires socket, order code: CESO
Specification
Detection angle
120°
Time lag range
10 seconds to 40 minutes in 9 steps
Photocell range
30 to 1000 lux, and inactive
Loading
Up to 6 amps (1500W) of resistive loads. Up to 6 amps (1500W) of fluorescent loads. Up to 3 amps (750W) of electronic and wire wound transformer loads. Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings. Up to 1 amp (250W) of fans.
Dimensions
Unit: 102 x 60mm / Swivel Base: 74 x 64mm
