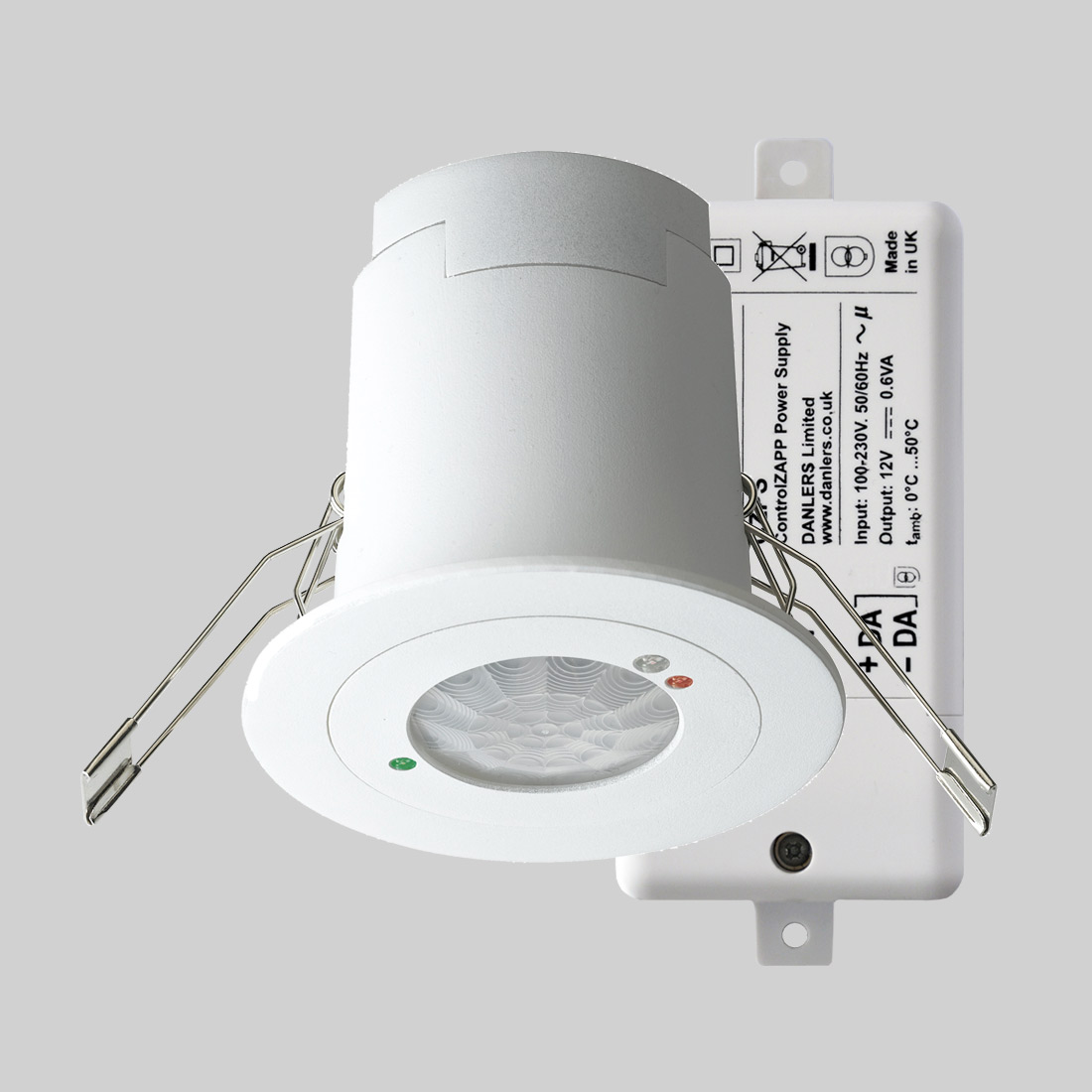

EZ CEFL DALI
EZ CEFL DALI
Ceiling mounted controls for DALI ballasts.
Programmable Energy Saving Control for switching and dimming DALI ballasts This remotely programmable control is ideal for flush mounting through suspended or plasterboard ceilings. Programmable by Android phone (4.3 or later) or tablet via Bluetooth Smart. Easy to configure interface enabling greater energy saving, safety and security. EZ CEFL DALI is designed for use with DALI ballasts (broadcast). It also includes a relay with special high surge contact material, so they are suitable for use with high bay LED lamps. Complete with DALI Power Supply Unit suitable for controlling up to 20 DALI ballasts.
Voltage
Suitable for mains voltage 100 - 260Vac, 50Hz (switch mode).
Loading
Suitable for switching and dimming DALI ballasts (broadcast only) and can control up to 40mA, eg. 20 ballasts at 2mA (varies according to make and model of ballasts). DANLERS DALI Power Supply Unit is rated at 40mA (DALI standard allows 250mA maximum). The controls interface of a DALI ballast normally sources at 2mA. Please refer to your ballast instructions. They can also switch up to: 10 amps (3000W) of resistive loads 6 amps (1500W) fluorescent lamps, high frequency or switch start, incandescent or mains halogen lamps (recommended with integral safety fuse) 3 amps (750W) of electronic or wire wound transformers. 2 amps (500W) of: CFL, LED drivers and LED lamps and fittings. 1 amp (250W) of fans or most metal halide lamps.
Detection range
360 degrees with 8m diameter when mounted at a 2.4m ceiling height.
Time Lag
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Lux
Enabled: 30 to 1000 lux and infinite lux (photocell inactive).
Dimensions
Device: 85mm diameter x 79mm Power Supply: 120 x 50 x 32mm
Additional Features
Password protection Batch programming Up to 100m signal range ON / OFF override Easy to install Ideal for retrofit or new build
