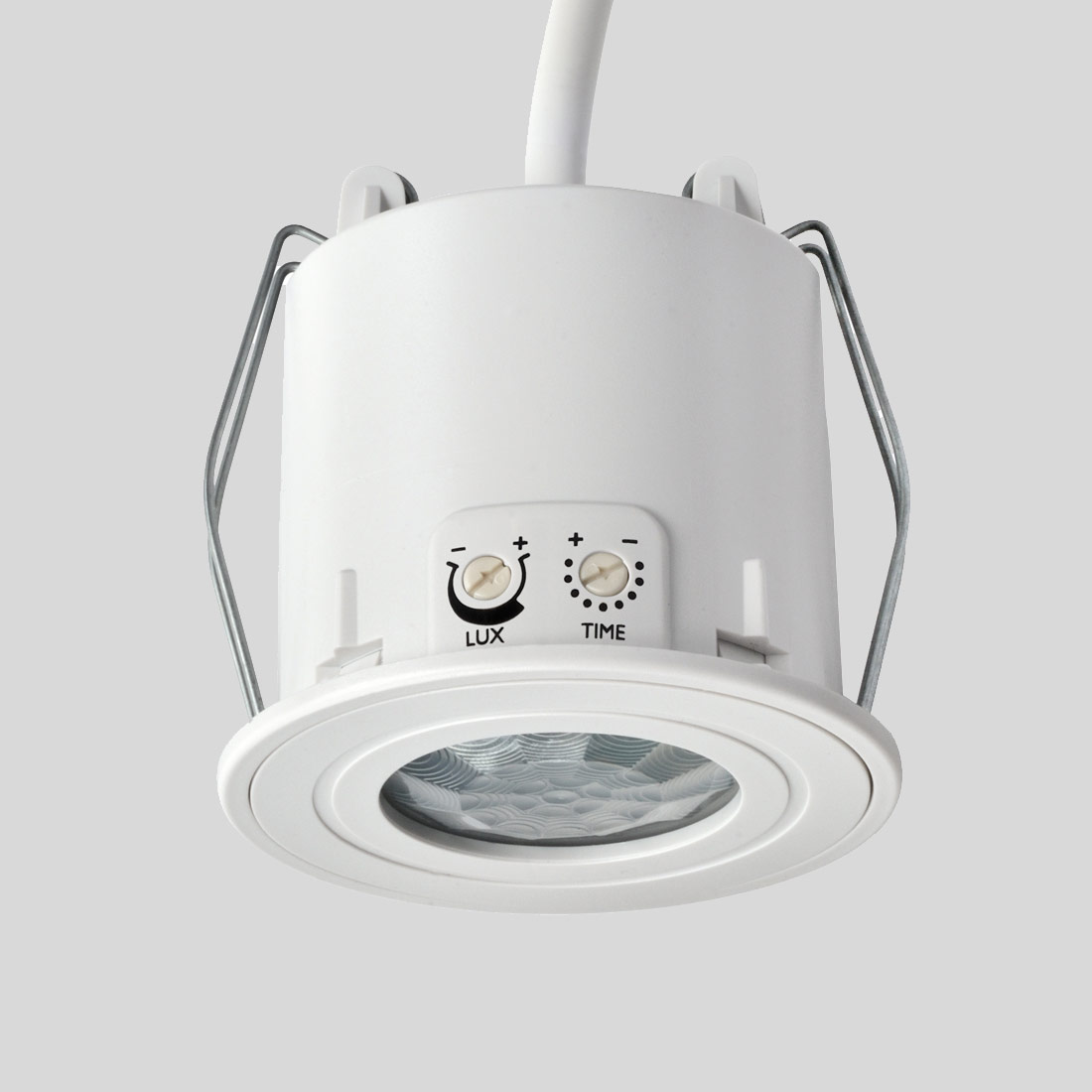

CEFL PIR DALIP
CEFL PIR DALIP
Ceiling flush mounted controls.
Ceiling flush-mounted PIR occupancy switches with closed loop control for DALI ballasts CEFL PIR DALIP can be used to control up to 20 high frequency DALI dimmable ballasts (broadcast). They incorporate a passive infra-red quad sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level. The products can be flush mounted into suspended and plasterboard ceilings. CEFL PIR DALIP operates by Presence Detection. The PIR switch will automatically switch the lights ON when a person enters the room. It will automatically switch the load OFF or to its reduced lux level (minimum) when no further movement is detected for its RUN-ON time.
Detection Zone
360°
Time lag range
10 seconds to 40 minutes in 9 steps
Run-on time
0, 1, 2, 5, 10, 15, 20, 30 mins and infinite (always ON at minimum)
Photocell range
30 to 1000 lux, and inactive
Loading
Daylight linked dimming with occupancy switching. For controlling DALI dimmable ballasts (broadcast only). These controls have an integral DALI Power Supply Unit suitable for use with up to 12 DALI ballasts, assuming each ballast has a constant current output of 1mA. These controls can also switch up to 6 amps (1500W) of dimmable fluorescent lamps. 2 amps (500W) of CFL, LED Drivers and LED lamps and fittings.
Dimensions
72mm diameter x 68mm
