EZ CEFL 10VDC
EZ CEFL 10VDC
Ceiling mounted controls for 1-10VDC ballasts.

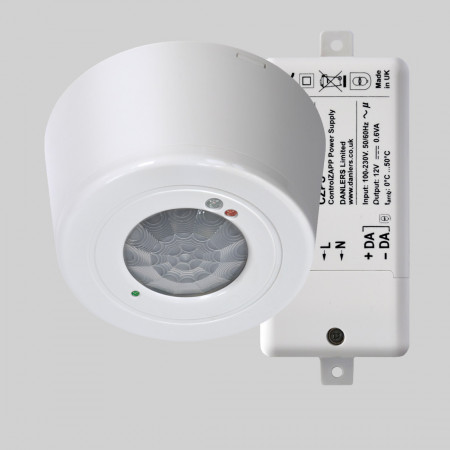

Programmable Energy Saving Control for switching and dimming 1-10VDC ballasts This remotely programmable control is ideal for flush mounting through suspended or plasterboard ceilings. Programmable by Android phone (4.3 or later) or tablet via Bluetooth Smart. Easy to configure interface enabling greater energy saving, safety and security. It also includes a relay with special high surge contact material, so they are suitable for use with high bay LED lamps. EZ CEFL 10VDC is designed for use with 1-10VDC ballasts.
Voltage
Suitable for mains voltage 100 - 260Vac, 50Hz (switch mode).
Loading
Suitable for switching and dimming 1-10VDC ballasts. Can control up to 20mA, eg. 20 ballasts at 1mA (varies according to make and model of ballasts). They can also switch up to: 10 amps (3000W) of resistive loads 6 amps (1500W) fluorescent lamps, high frequency or switch start, incandescent or mains halogen lamps (recommended with integral safety fuse) 3 amps (750W) of electronic or wire wound transformers. 2 amps (500W) of low energy lamps: CFL, LED, drivers and LED lamps and fittings. 1 amp (250W) of fans or most metal halide lamps.
Detection range
360 degrees with 8m diameter when mounted at a 2.4m ceiling height.
Time Lag
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Lux
Enabled: 30 to 1000 lux and infinite lux (photocell inactive).
Dimensions
Device: 85mm diameter x 79mm Power Supply: 120 x 50x 32mm
Additional Features
Password protection Batch programming Up to 100m signal range ON / OFF override Easy to install Ideal for retrofit or new build
