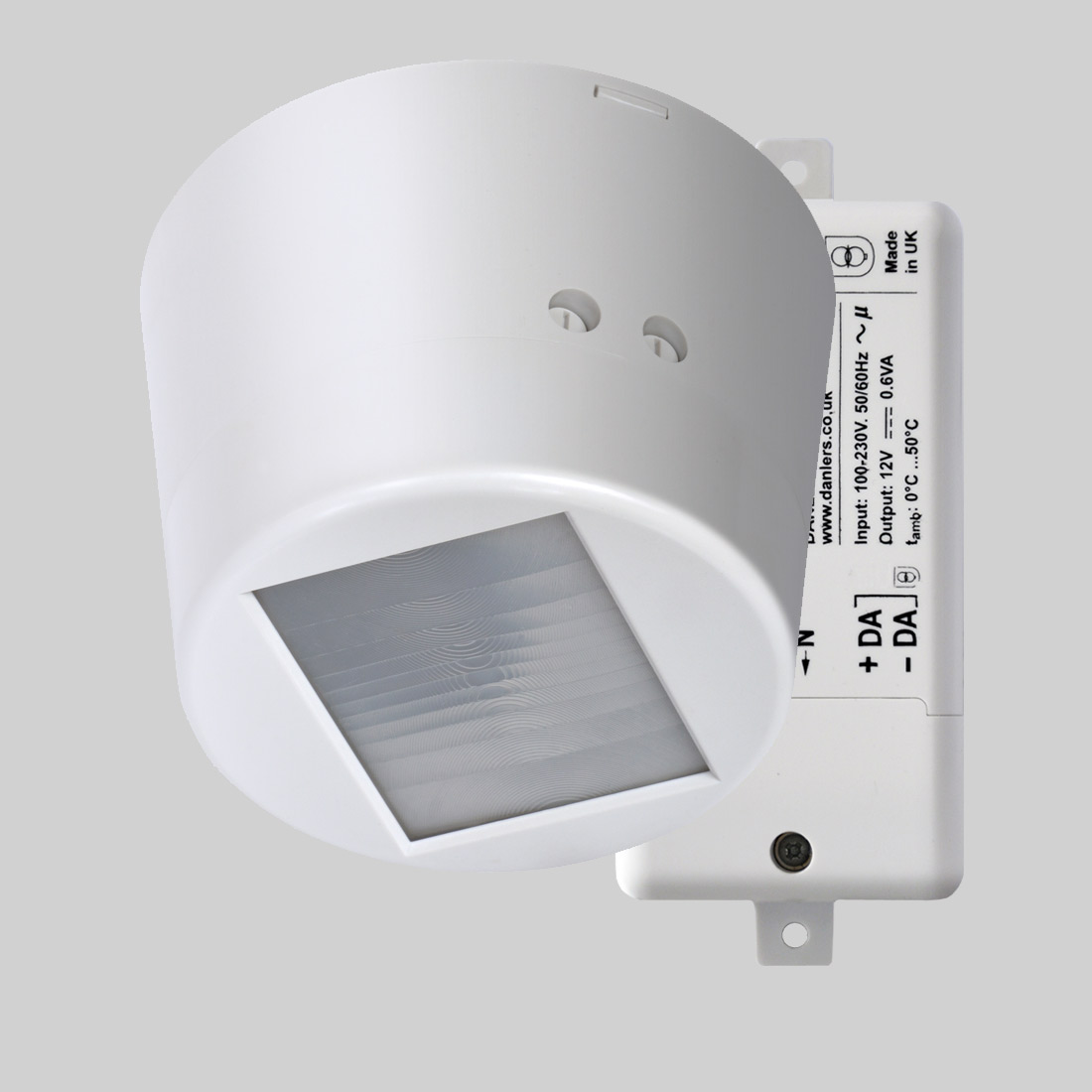

CZ HB ND 10VDC
CZ HB ND 10VDC
High Bay Mounted Controls.
rogrammable High Bay Energy Saving Controls with Scheduling for switching and dimming 1-10VDC ballasts This range of High Bay multi-functional controls is specifically designed for the automatic control of lighting loads in areas with demanding mounting heights such as factories, storage aisles, entrance halls and sports halls. They include a relay with special high surge contact material, so they are suitable for use with high bay LED lamps. Programmable by Android phone (4.3 or later) or tablet via Bluetooth Smart. Easy to configure interface enabling greater energy saving, safety and security. The products incorporate a passive infra-red quad sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level. All standard high bay controls are hard wired and can be mounted directly onto solid ceilings or onto a range of different mounting boxes. These controls are designed for use with 1-10VDC ballasts. App suitable for Android devices 4.3 or later.
Voltage
Suitable for mains voltage 100 - 260Vac, 50Hz (switch mode).
Loading
Suitable for switching and dimming 1-10VDC ballasts. Can control up to 20mA, eg. 20 ballasts at 1mA (varies according to make and model of ballasts). They can also switch up to: 10 amps (3000W) of resistive loads 6 amps (1500W) fluorescent lamps, high frequency or switch start, incandescent or mains halogen lamps (recommended with integral safety fuse) 3 amps (750W) of electronic or wire wound transformers. 2 amps (500W) of low energy lamps: CFL, LED drivers and LED lamps and fittings. 1 amp (250W) of fans or most metal halide lamps.
Minimum load
2W resistive, suitable for most energy saving lamps, LED’s and emergency fittings.
Time Lag
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Short Visit Time
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Lux
Enabled: 30 to 1000 lux and infinite lux (photocell inactive).
Sensitivity
Adjustable via APP.
Output
Mains switching or DALI switching functionality.
Dimensions
Device: 90mm diameter x 63mm Power Supply: 120 x 50x 32mm
Additional Features
Accurate ‘Real time’ clock with battery back up when powered off Accurately timed override ON or OFF Active or Passive PIR occupancy switching Patented ‘Intelligent’ photocell calibration Automatic Daylight Savings Time (BST) correction with offset adjustment Automatic Sunrise / Sunset prediction. This feature can be remotely adjusted via APP. Upload indicator to ensure successful programming. LED indicator for presence recognition within its detection range (can be turned off). Manual Group Control ON / OFF / RESUME feature on APP
