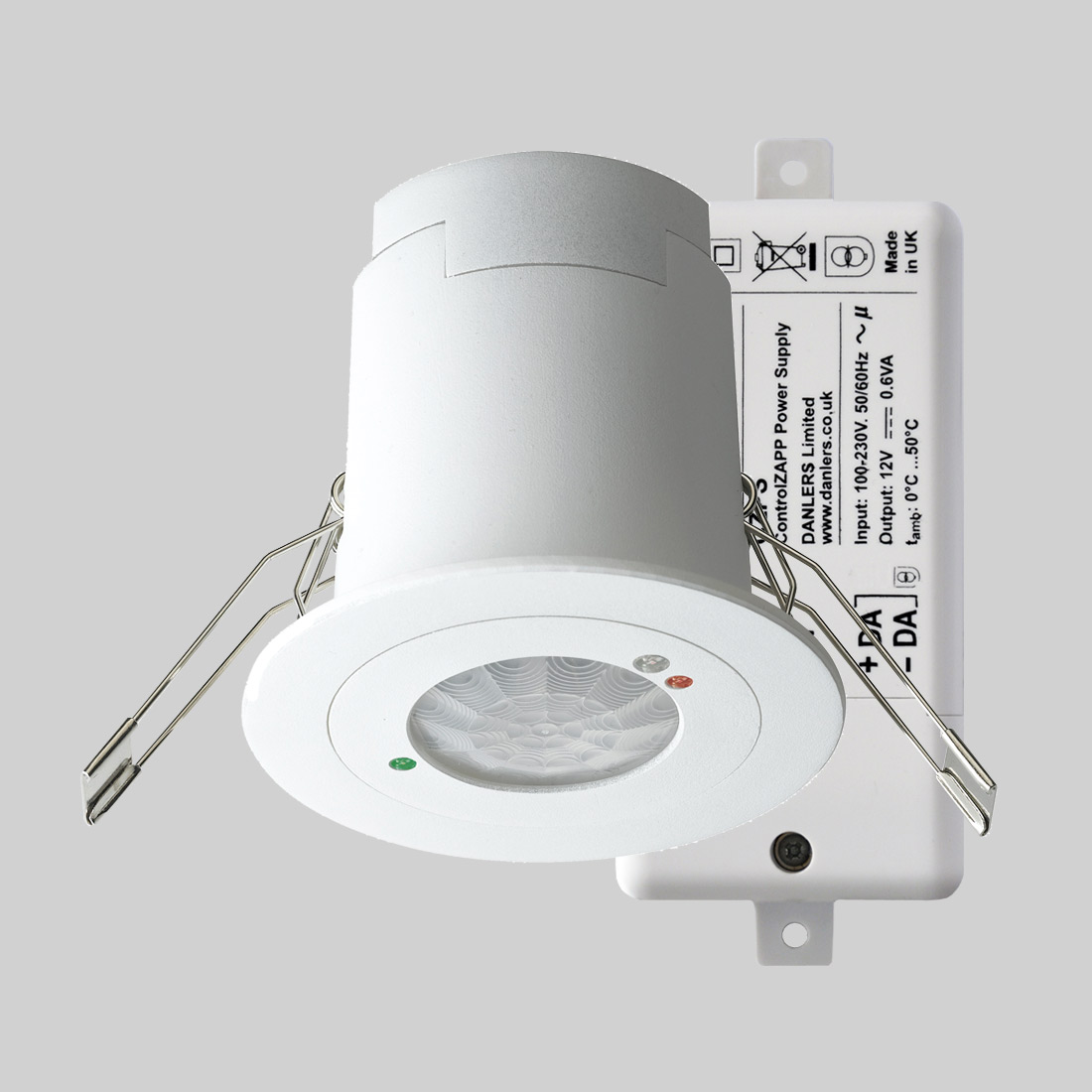

CZ CEFL 10VDC
CZ CEFL 10VDC
Ceiling mounted controls for 1-10VDC ballasts.
Programmable Energy Saving Control with Scheduling – Ceiling Flush Mounted. Suitable for switching and dimming 1-10VDC ballasts. This multi-functional control is ideal for flush mounting through suspended or plasterboard ceilings. Programmable by Android phone (4.3 or later) or tablet via Bluetooth Smart. Easy to configure interface enabling greater energy saving, safety and security. CZ CEFL 10VDC is designed for use with 1-10VDC ballasts.
Voltage
Suitable for mains voltage 100 - 260Vac, 50Hz (switch mode).
Loading
Suitable for switching and dimming 1-10VDC ballasts. Can control up to 20 ballasts at 1mA (varies according to make and model of ballasts). They can also switch up to: 10 amps (3000W) of resistive loads 6 amps (1500W) fluorescent lamps, high frequency or switch start, incandescent or mains halogen lamps (recommended with integral safety fuse) 3 amps (750W) of electronic or wire wound transformers. 2 amps (500W) of low energy lamps: CFL, LED drivers and LED lamps and fittings. 1 amp (250W) of fans or most metal halide lamps
Detection range
360 degrees with 8m diameter when mounted at a 2.4m ceiling height.
Time Lag
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Short Visit Time
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Lux
Enabled: 30 to 1000 lux. Can be also disabled.
Sensitivity
Adjustable via APP.
Output
Analogue or DALI switching functionality.
Dimensions
Device: 85mm diameter x 79mm Power Supply: 120 x 50 x 32mm
Additional Features
Accurate ‘Real time’ clock with battery back up when powered off Accurately timed override ON or OFF Active or Passive PIR occupancy switching Patented ‘Intelligent’ photocell calibration Automatic Daylight Savings Time (BST) correction with offset adjustment Automatic Sunrise / Sunset prediction. This feature can be remotely adjusted via APP. Upload indicator to ensure successful programming. LED indicator for presence recognition within its detection range (can be turned off). Manual Group Control ON / OFF / RESUME feature on APP
