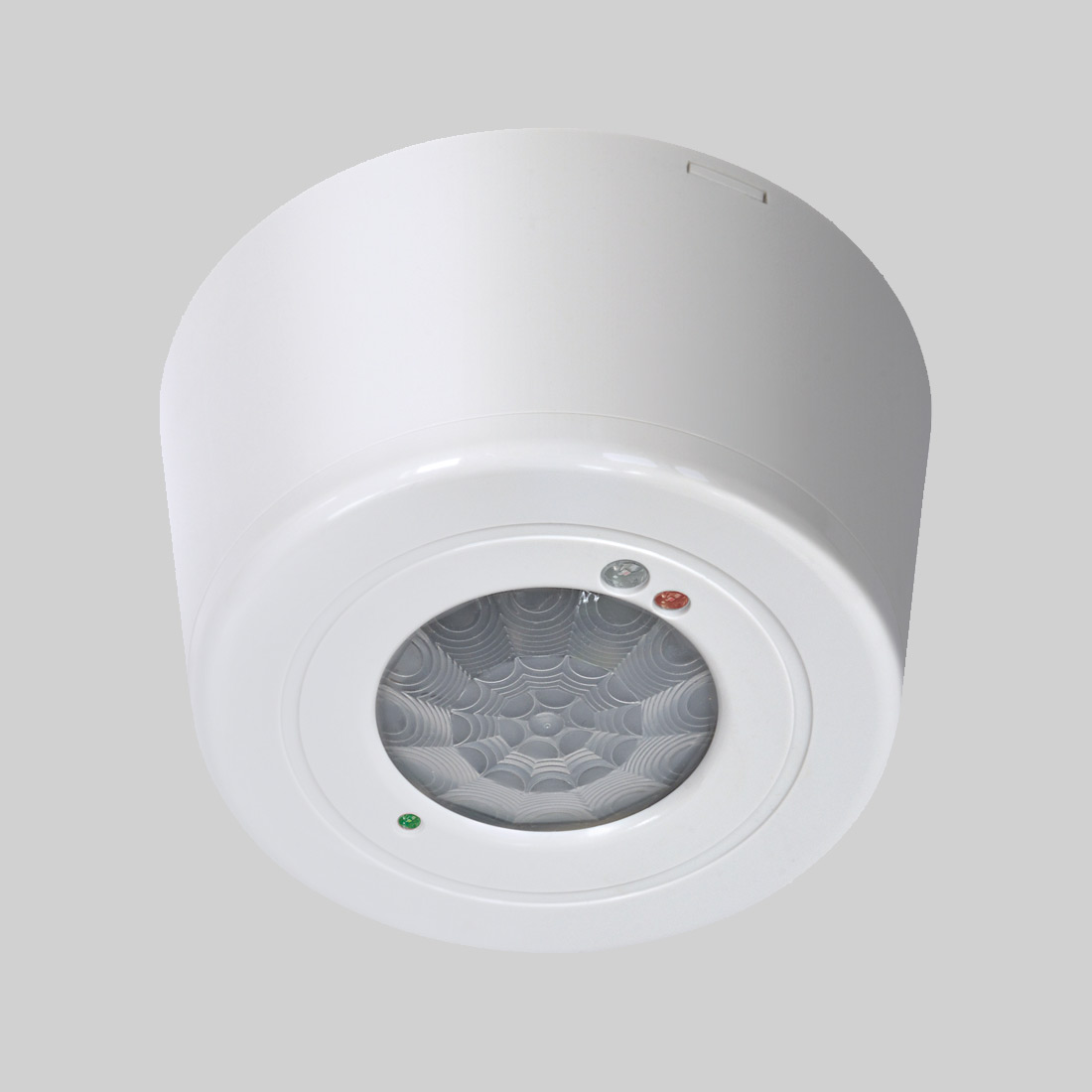

CESR PIR 10VDC
CESR PIR 10VDC
Ceiling Surface Mounted Controls.
Ceiling surface-mounted PIR occupancy switches with closed loop control for 1-10V ballasts CESR PIR 10VDC can be used to control up to 20 high frequency 1-10V dimmable ballasts. They incorporate a passive infra-red quad sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level. These products are hard wired and can be mounted directly onto solid ceilings or onto a range of different mounting boxes. CESR PIR 10VDC operates by Presence Detection. The PIR switch will automatically switch the lights ON when a person enters the room. It will automatically switch the load OFF or to its reduced lux level (minimum) when no further movement is detected for its RUN-ON time.
Detection Zone
360°
Time lag range
10 seconds to 40 minutes in 9 steps
Run-on time
0, 1, 2, 5, 10, 15, 20, 30 mins and infinite (always ON at minimum)
Photocell range
30 to 1000 lux, and inactive
Loading
Daylight linked dimming with occupancy switching. For controlling 1-10VDC dimmable ballasts. Controls up to 20mA, e.g. 20 ballasts at 1mA. These controls can also switch up to 6 amps (1500W) of dimmable fluorescent lamps. 2 amps (500W) of CFL, LED Drivers and LED lamps and fittings.
Dimensions
91mm diameter x 45mm
