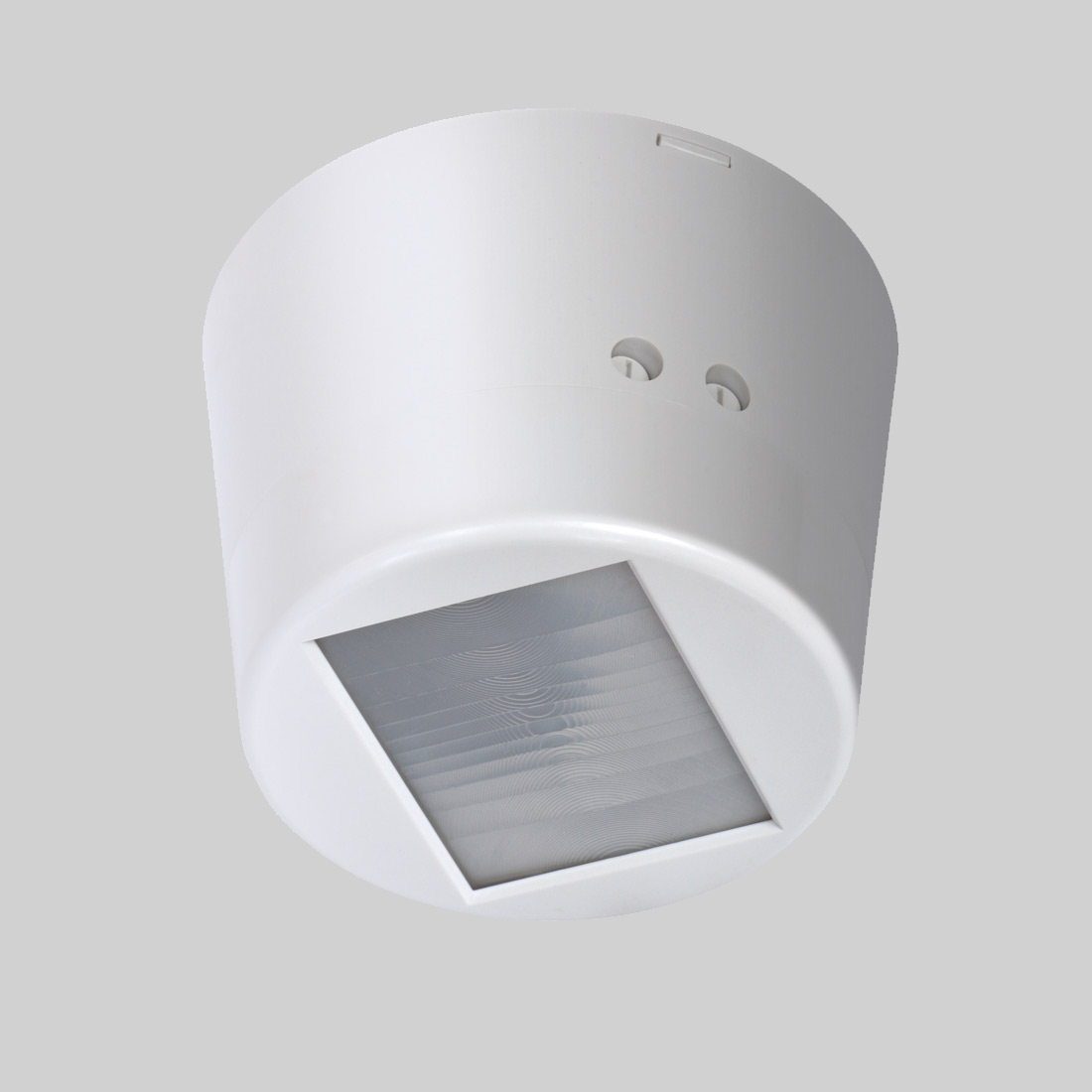

HBA PIR ND
HBA PIR ND
Switches (switching only) .
High Bay PIR occupancy switches This range of HIGH BAY passive infra-red (PIR) occupancy switches is specifically designed for the automatic control of lighting loads in areas with demanding mounting heights such as factories, storage aisles, entrance halls and sports halls. They include a relay with special high surge contact material, so they are suitable for use with high bay LED lamps. The products incorporate a passive infra-red quad sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level. All standard high bay controls are hard wired and can be mounted directly onto solid ceilings or onto a range of different mounting boxes. Each control is hard wired and can be mounted directly onto solid ceilings or a range of different mounting boxes. These controls operate by Absence Detection. It requires a retractive (momentary) switch to be pressed when a person enters the room. This will switch the lights ON and enable the PIR switch to control the load. The load will automatically be switched OFF or to its reduced lux level (minimum) when no further movement is detected for its RUN-ON time. Narrow Detection version is ideal for covering storage aisles. Part code: HBA PIR ND
Photocell Range
30 lux and infinite lux (photocell inactive)
Maximum Load
6 amps (1500W) of resistive loads. 6 amps (1500W) of fluorescent loads. 3 amps (750W) of electronic and wire wound transformer loads. 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings. 1 amp (250W) of fans
Time Lag Range
10seconds, 20 seconds, 40 seconds, 80 seconds, 2m 30s, 5m, 10m, 20m or 40 minutes
Mounting Height
Up to 12m
Detection Range
Up to 3m
Dimensions
90mm diameter x 63mm
Detection Zone
360°
