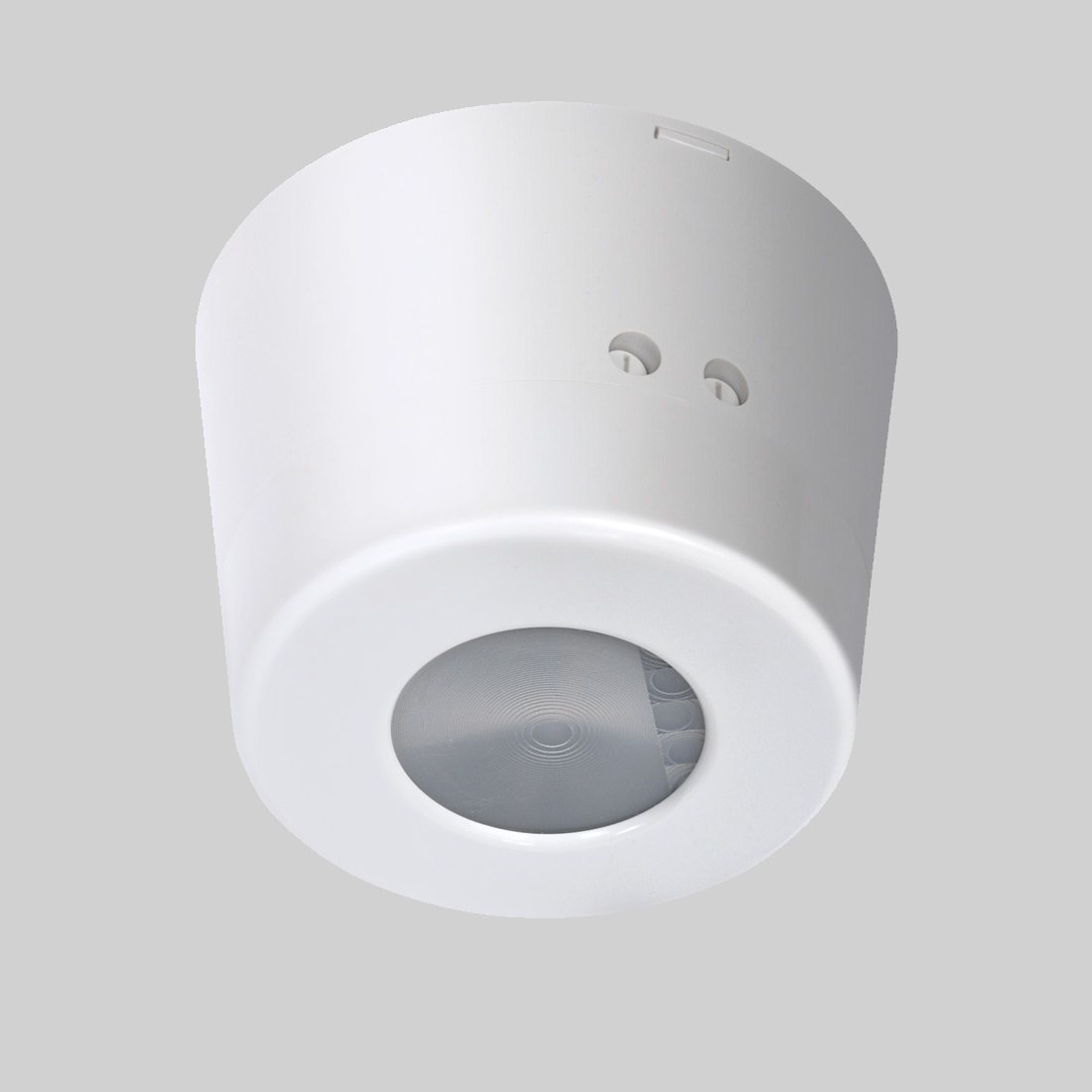

HB PIR SP
HB PIR SP
Switches (switching only) .
This range of HIGH BAY passive infra-red (PIR) occupancy switches is specifically designed for the automatic control of lighting loads in areas with demanding mounting heights such as factories, storage aisles, entrance halls and sports halls. They include a relay with special high surge contact material, so they are suitable for use with high bay LED lamps. The products incorporate a passive infra-red quad sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level. All standard high bay controls are hard wired and can be mounted directly onto solid ceilings or onto a range of different mounting boxes. Each control is hard wired and can be mounted directly onto solid ceilings or a range of different mounting boxes. Spot Detection version is ideal for smaller areas, such as the entrances to storage aisles. Part reference: HB PIR SP
Maximum Load
6 amps (1500W) of resistive loads. 6 amps (1500W) of fluorescent loads. 3 amps (750W) of electronic and wire wound transformer loads. 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings. 1 amp (250W) of fans
Mounting Height
Up to 20m
Detection Range
Up to 5m
Photocell Range
30 lux and 1000 lux and maximum (photocell inactive)
Time lag range
10seconds, 20 seconds, 40 seconds, 80 seconds, 2m 30s, 5m, 10m, 20m or 40 minutes
Dimensions
90mm diameter x 63mm
Detection Zone
360°
