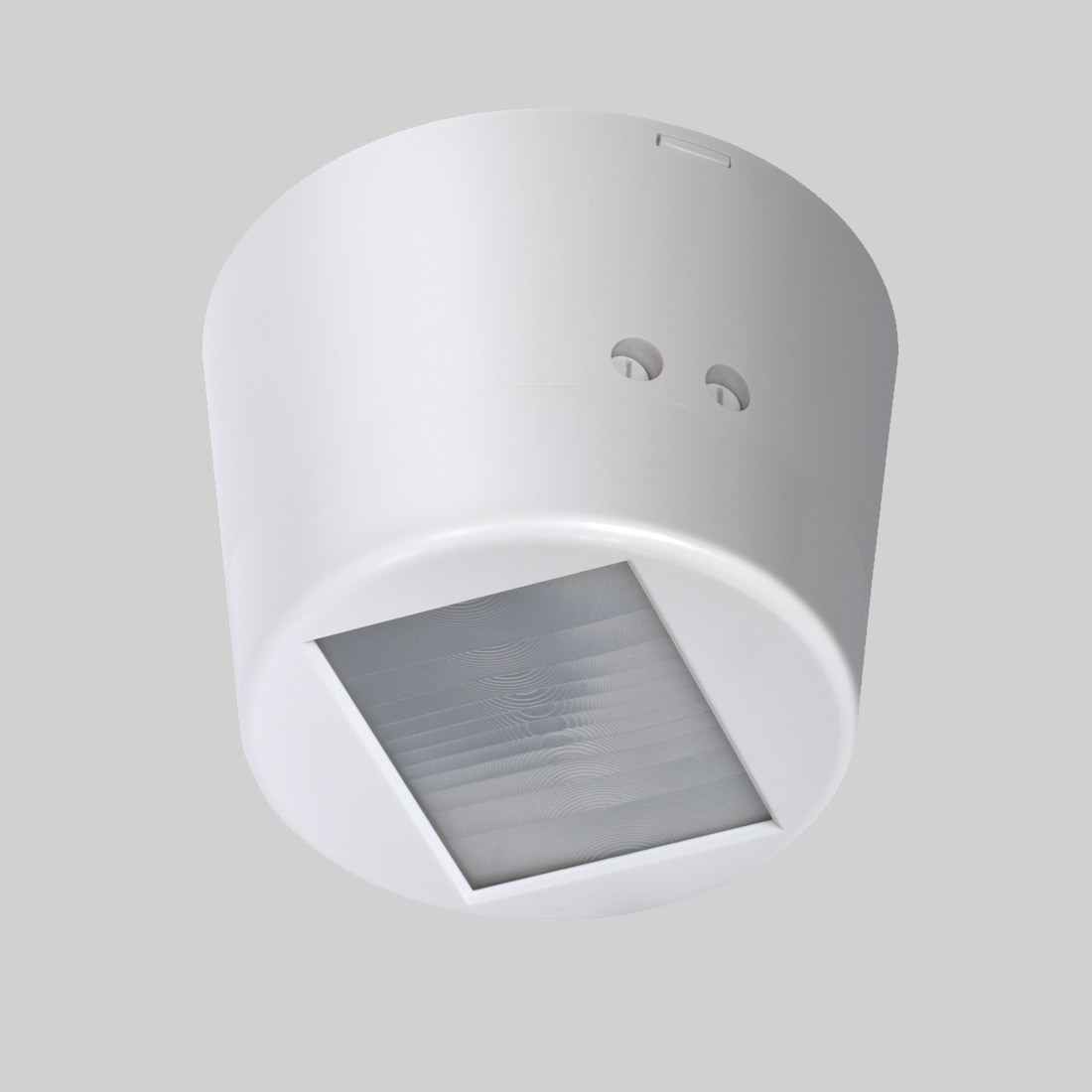

HB PIR ND
HB PIR ND
Switches (switching only) .
High Bay PIR with Narrow Detection The DANLERS range of HIGH BAY passive infra-red (PIR) occupancy switches is specifically designed for the automatic control of lighting loads in areas with demanding mounting heights such as factories, storage aisles, entrance halls and sports halls. They can be used to control up to 12 DALI (broadcast) dimmable ballasts. They also include a relay with high surge contact material, so they are suitable for use with high bay LED lamps. Each product incorporates a passive infra-red sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level. All standard high bay controls are hard wired and can be mounted directly onto solid ceilings or onto a range of different mounting boxes. These controls operate by Presence Detection. The PIR switch will automatically switch the lights ON when a person enters the detection area. It will automatically switch the load OFF or to its reduced lux level (minimum) when no further movement is detected for its RUN-ON time. Narrow Detection version is ideal for covering storage aisles. Part reference: HB PIR ND
Mounting Height
Up to 12m
Detection Range
Up to 3m
Maximum Loading
6 amps (1500W) of resistive loads. 6 amps (1500W) of fluorescent loads. 3 amps (750W) of electronic and wire wound transformer loads. 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings. 1 amp (250W) of fans
Photocell Range
30 lux and 1000 lux and maximum (photocell inactive)
Time lag range
10seconds, 20 seconds, 40 seconds, 80 seconds, 2m 30s, 5m, 10m, 20m or 40 minutes
Dimensions
90mm diameter x 63mm
Detection Zone
360°
