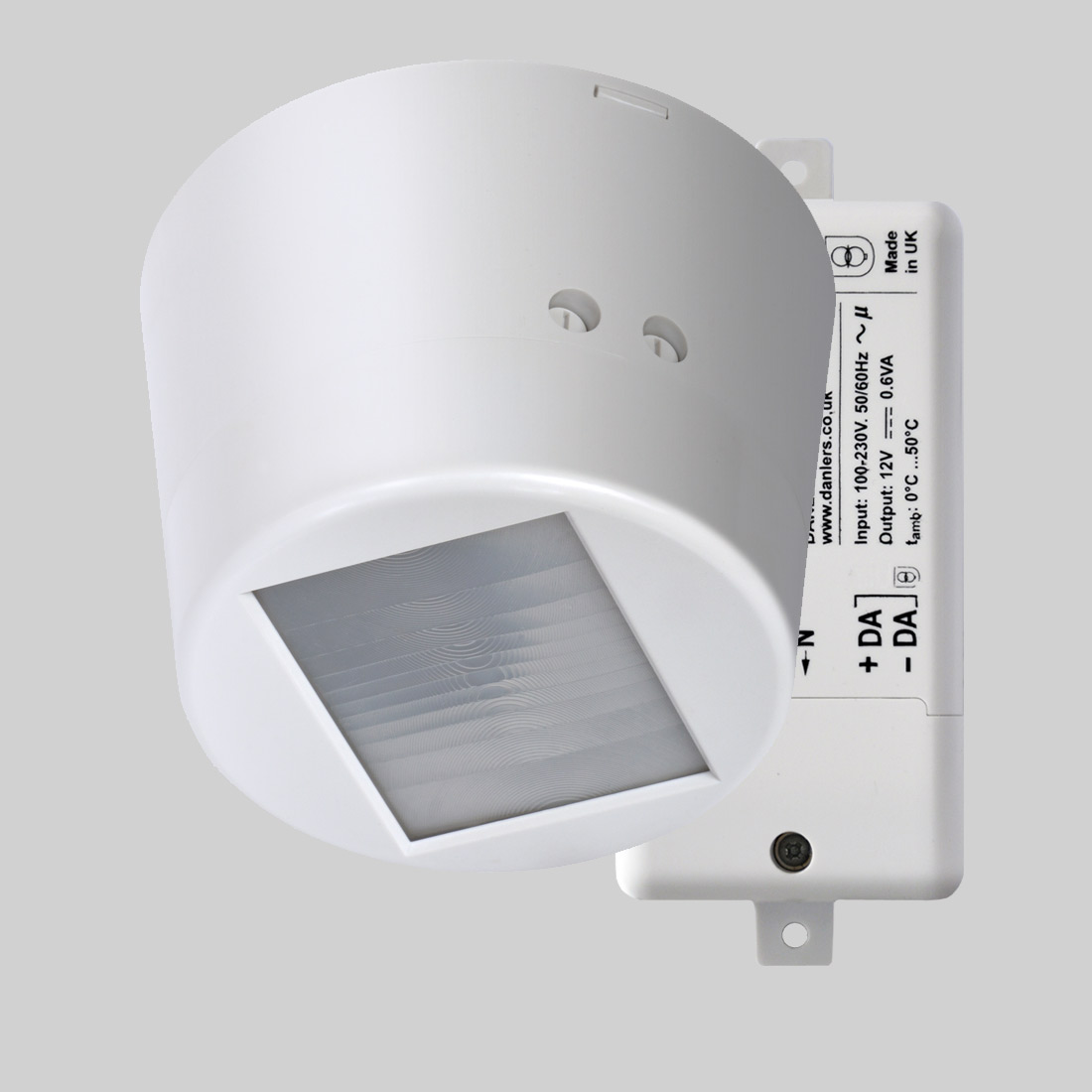

EZ HB ND
EZ HB ND
High bay controls for switching only.
Programmable High Bay Energy Saving Controls for Switching Applications This range of High Bay multi-functional controls is specifically designed for the automatic control of lighting loads in areas with demanding mounting heights such as factories, storage aisles, entrance halls and sports halls. They include a relay with special high surge contact material, so they are suitable for use with high bay LED lamps. Programmable by Android phone (4.3 or later) or tablet via Bluetooth Smart. Easy to configure interface enabling greater energy saving, safety and security. The products incorporate a passive infra-red quad sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level. All standard high bay controls are hard wired and can be mounted directly onto solid ceilings or onto a range of different mounting boxes.
Voltage
Suitable for mains voltage 100 - 260Vac, 50Hz (switch mode).
Loading
10 amp (2500W) of Resistive loads. 6 amp (1500W) of Fluorescent loads. 3 amp (750W) of Transformer loads. Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings.
Minimum load
2W resistive, suitable for most energy saving lamps, LED’s and emergency fittings.
Time Lag
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Lux
Enabled: 30 to 1000 lux and infinite lux (photocell inactive).
Dimensions
Device: 90mm diameter x 63mm Power Supply: 120 x 50x 32mm
Additional Features
Password protection Batch programming Up to 100m signal range ON / OFF override Easy to install Ideal for retrofit or new build
