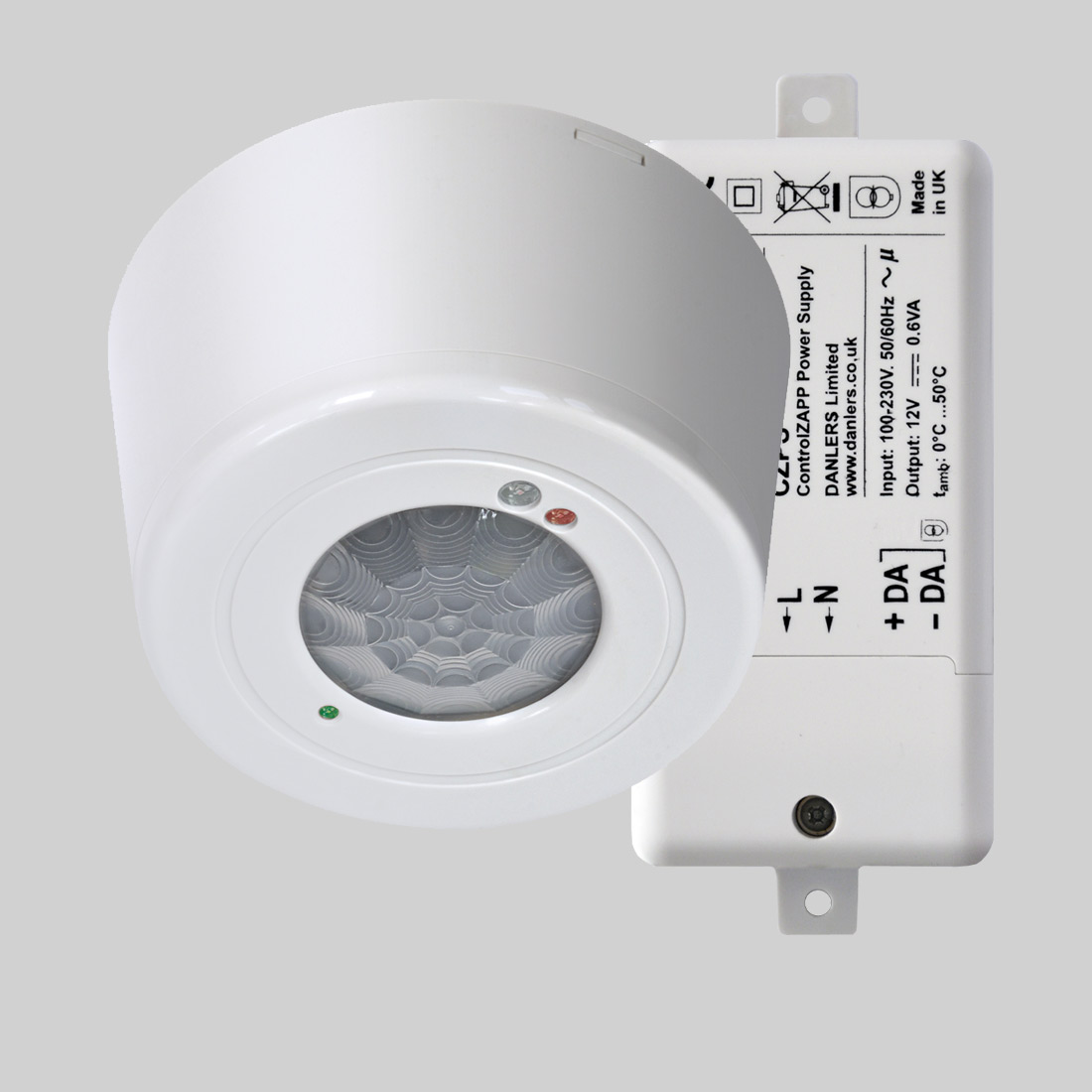

CZCESR
CZCESR
Ceiling mounted controls for switching only.
Programmable Energy Saving Control with Scheduling for Switching Applications This multi-functional control can be mounted directly onto solid ceilings or a range of different mounting boxes. Programmable by Android phone (4.3 or later) or tablet via Bluetooth Smart. It includes a relay with special high surge contact material, so they are suitable for use with high bay LED lamps. Easy to configure interface enabling greater energy saving, safety and security.
Voltage
Suitable for mains voltage 100 - 260Vac, 50Hz (switch mode).
Loading
10 amp (2500W) of Resistive loads. 6 amp (1500W) of Fluorescent loads. 3 amp (750W) of Transformer loads. Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings.
Minimum load
2W resistive, suitable for most energy saving lamps, LED’s and emergency fittings.
Detection range
360 degrees with 8m diameter when mounted at a 2.4m ceiling height.
Time Lag
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Short Visit Time
Can be easily adjusted by APP to individual requirement from 10 seconds to 23 hours 59 minutes 59 seconds
Lux
Enabled: 30 to 1000 lux and infinite lux (photocell inactive).
Sensitivity
Adjustable via APP.
Output
Mains switching or DALI switching functionality.
Dimensions
Device: 91mm diameter x 45mm Power Supply: 120 x 50 x 32mm
Additional Features
Accurate ‘Real time’ clock with battery back up when powered off Accurately timed override ON or OFF Active or Passive PIR occupancy switching Patented ‘Intelligent’ photocell calibration Automatic Daylight Savings Time (BST) correction with offset adjustment Automatic Sunrise / Sunset prediction. This feature can be remotely adjusted via APP. Upload indicator to ensure successful programming.
