CBU-MNPIR5M10V
CBU-MNPIR5M10V
Ceiling Mounted
The flush-mounted CBU-MNPIR5M10V is designed for convenient installation through a 38/40mm diameter hole into a ceiling void with a minimum depth of 60mm. It is configurable for any room occupancy style via the free Casambi app available on Google Play or the Apple App Store. Additionally, this model features 0-10V dimmable capabilities.
Specifications

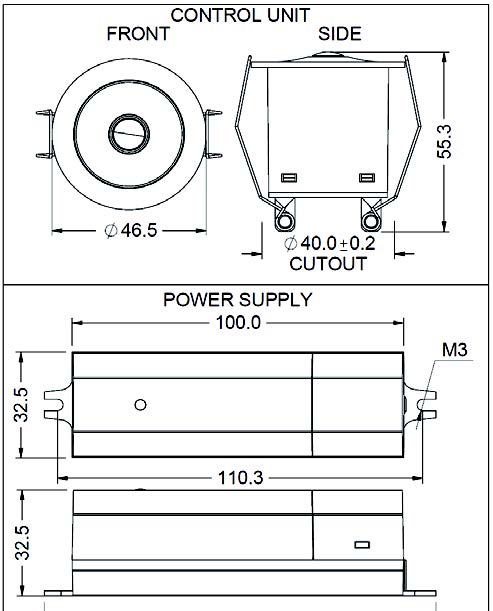

Dimensions
Detection Diagrams
Wiring Diagrams
Output:
0-10VDC
LUX PARAMETERS
5 - 2000 lux
Max. Current:
40mA (maximum 20 ballast)
Degree of protection:
IP40
